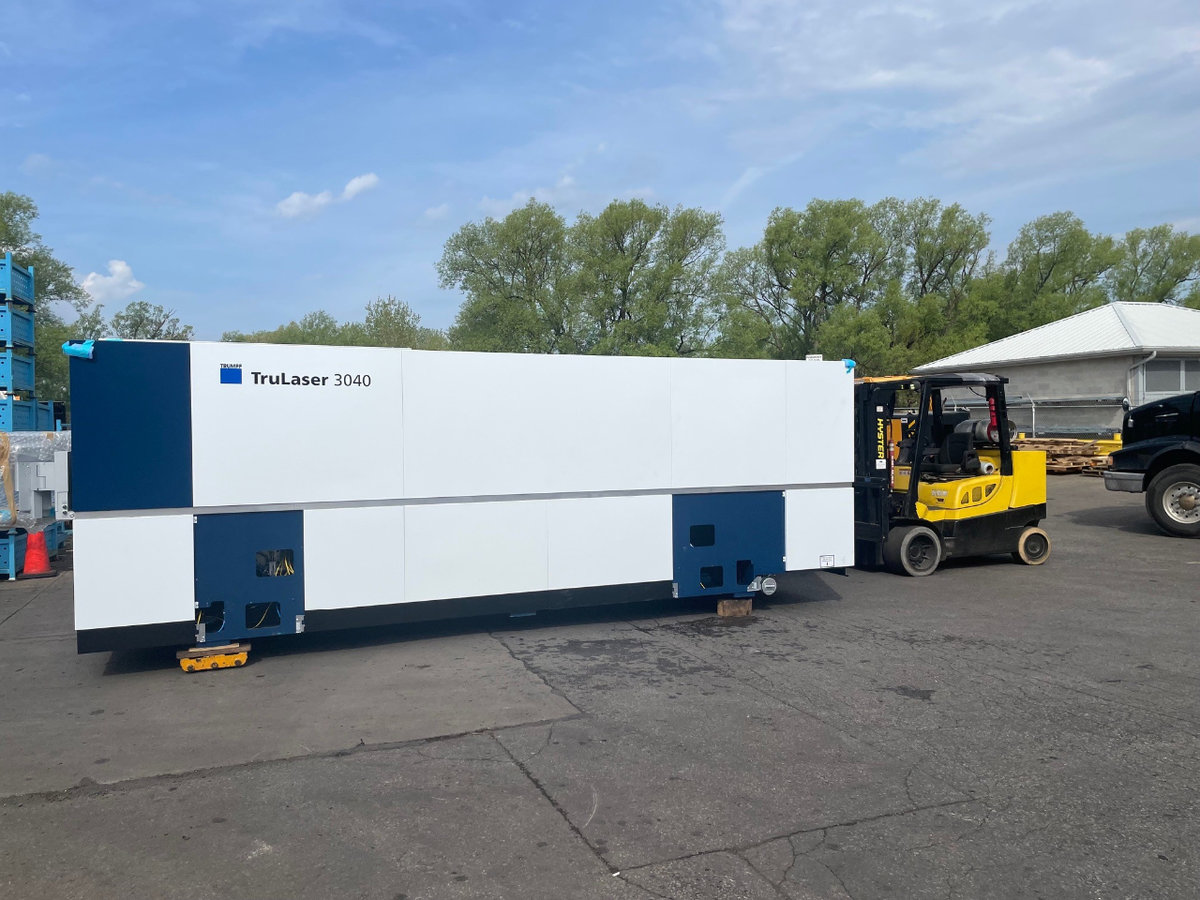

Our New Laser has Arrived!

Over the past few weeks, we have been in the midst of setting up our new ten thousand watt Trumpf laser. As a collective, from the dedicated workers running the machines to the sales and programming departments within the company, everybody has been looking forward to the moment when this machine begins operation.



One of the biggest assets of this new machine is the capabilities. For reference, this machine can cut at ten thousand watts, whereas, our previous machine cut at four thousand watts. With this large increase in cutting speed, we can enhance and continue with our commitment to serving our customers with the best manufacturing service in Southern Ontario. Additionally, this broadens the proficiency of the company as a whole. Ensuring that our fabrication is done accurately and on-time is of the utmost importance for LMP.  Moreover, as we are moving on from a machine with a 60” x 120” cutting area to an area that is 72” x 144”, LMP can supply larger parts and more parts per sheet as the cutting area has increased. With four Fiber machines now operating at our location, we are devoted to ensuring that LMP stays up to date with the leading technology to best serve our customers.



If you have any questions, feel free to reach out to us via our Contact Us page.





Thank you for reading our blog post! Don't forget to leave a Google Review and follow us on our social media accounts!



Instagram: @LaserMetalProfiles

LinkedIn: Laser Metal Profiles Limited



LMP Team at 4:13 PM
Add a Comment
RSS icon Facebook icon Twitter icon LinkedIn icon

What is Laser Cutting?

Laser cutting, the foundational aspect of our business processes at Laser Metal Profiles, is a thermal operation that uses a laser beam to pierce and slit raw material in an isolated area. Essentially, the laser powered beam is concentrated on a single point that has a diameter ranging from 0.08 mm – 1 mm depending on the thickness and type of material. At LMP, as seen on our products page, we exclusively cut steel. With this, the laser cutting process can be broken down into an eight step process.





1. Optics: Focusing the beam



The laser cutting equipment that operators use at LMP include two important components: the lens and mirror optics. Without these, the machine will cut inaccurately and inefficiently. The focus is achieved through the use of multi-lens optics that measure the focal length and the diameter of the space in-between. Moreover, the mirrors act as a guide for the lens so that it can verify the horizontal coordinates on the grid are correctly located to ensure the cut is done correctly according to the documents provided by the customer.





2. The Laser Beam



The mechanism that is responsible for cutting through the material is known as the laser beam. This is exactly how it sounds; a beam is directed to a localized area that heats up the material to the point where it either evaporates or melts. Once this happens the process of cutting has occurred. Interestingly, the process includes no contact which ensures that the parts that are being cut incur no damage. Considering the beam is guided based upon a program created by our CAD department, LMP ensures accuracy and proficiency.





3. Cutting Gas



At LMP, our machines use oxygen, nitrogen, and compressed air as the cutting gas. Oxygen or argon gasses are also used for laser cutting machines but the latest technology of these machines use oxygen and nitrogen as the preferred gas types. Another benefit that these gasses have is that they have virtually no reaction to the melted metal which in turn, prevents residue on the customers parts or in the environment. Additionally, the reduction of burrs are often observed in aluminum, stainless steel or mild steel material when being cut with the use of nitrogen gas.





4. Drag lines



When laser cutting, there are “drag lines” on the surface of the part. It is known to be a good cut when the lines are thinly and consistently present along the parallel line of the part. Essentially, this pattern is parallel to the cutting head and beam of the laser. An example is provided in the photo below. This can be perfected by ensuring the machine set-up prior to cutting.





5. Melt



Whenever raw material is cut, as mentioned above, the beam is strong enough to melt the material at the localized point. In other words, the beam emits a certain amount of energy where at its threshold,it will burn right through and oxidize the steel being cut.





6. The Cutting Point



This part of the process is the most critical for ensuring the parts are cut cleanly and without a great amount of residue. On the laser cutting table, there are coordinates for the cutting head to calibrate to. This streamlines the operations as it allows for the cutting head to get the most precise cut and location.





7. The Nozzle



The brass nozzle is at the bottom of the cutting head, the closest point to the material on the machine's table. As such, this is an important part of the cutting process because this is where the gas used for cutting and the beam of the laser intersect. Moreover, there are different types and sizes of nozzles. In short, this can include specific shapes that are optimal for cutting speed, edge quality or gas optimization.





8. The Cutting Direction



When the cutting head is moved around the X and Y axis during the programmed cutting schedule, a kerf is formed. An important caveat with the counting direction is the laser light that guides the cutting head. If the light is parallel to the cutting direction, a smooth edge will result. If the light is perpendicular to the cutting direction, it will create a burr on the material. The cutting quality is contingent on this aspect. Evidently, the cutting direction must be properly set-up to ensure the most accurate cut possible.



As described throughout this article, the intricacies of each process in the laser cutting process is equally important so that the machine can function properly. When they all come together, the laser cutting quality and efficiency reaches optimal levels



Thank you for reading our blog post! Don't forget to leave a Google Review and follow us on our social media accounts!



Instagram: @LaserMetalProfiles

LinkedIn: Laser Metal Profiles Limited



============================================================


References


Laser cutting as a contact-free slitting process. (2022). TRUMPF. Retrieved May, 2022, from https://www.trumpf.com/en_CA/solutions/applications/laser-cutting/

LMP Team at 7:05 AM
Add a Comment
RSS icon Facebook icon Twitter icon LinkedIn icon

End of an Era: One Chapter is Closed as Another is Opened



Starting today, May 9th, the 2002 vintage Trumpf Laser that has been with Laser Metal Profiles (LMP) will be dismantled and replaced by a 2022 Trumpf laser as of this Friday. When LMP was first established twenty years ago, this was the first laser that was purchased and utilized up until May 6th, 2022. As such, it was the first laser that helped launch LMP into what it is today. In many ways, this vintage laser was the engine of the company in its early days.



Throughout the thousands of hours of service, it provided ample production and ensured that LMP met the deadlines of its customers. The stability of the last two decades meant that this machinery was a part of the ebbs and flows that LMP incurred throughout its years of operation. In so, the growth of the company can be partly attributed to this laser providing a quality output when our customers needed it most.





Considering we are bringing in new machinery in two weeks’ time, this moment is bittersweet for all those that have been a part of the soon-to-be 20-year journey of LMP. For the owner, Carlo, this is moment is especially sentimental. Aside from the production, this laser represented for him and his employees what building a foundation of a small business represents; determination, collaboration, and goal-oriented. In other words, as a collective, this company has bonded together to create a family-oriented environment that began from a single laser machine.



As mentioned earlier, In regard to the new laser to be installed, this 2022 machine will have a much higher wattage and larger cutting area to better serve the needs of our valuable customers. With a large uptick in inches per minute, the manufacturing processes will be completed at a more efficient rate. In turn, we look forward to this new chapter at LMP and can’t wait until the machine is up and running.



Thank you for reading our blog post! Follow us on our social media accounts:



Instagram: @LaserMetalProfiles

LinkedIn: Laser Metal Profiles Limited







LMP Team at 2:29 PM
RSS icon Facebook icon Twitter icon LinkedIn icon

Our Equipment

At Laser Metal Profiles, we guarantee quality service, superior products and the best, up to date equipment. Over the seventeen years in business, there has been so many technical advances with technology. Laser Metal Profiles followed and invested in these latest and greatest technologies which has contributed greatly in the overall success of the business. This has contributed to exceptional overall employee safety, optimized quality in our products and of course continued with our superior customer services.



We have the capability to process Carbon Steel, Stainless Steel, Aluminum, Brass, Copper and most other metallic materials on our 60" by 120" tables. We also offer Hi Definition Plasma Processing and Oxyfuel Processing Services.  We stock all grades of carbon steel ranging from A1011 through 50W.



Our precision equipment ensures that the product you require is done to perfection. Beyond this, our company offers forming as well as welding. It is important to note the complexity of the machines and know that the sky is the limit on what we can provide for our customers.





Material Type

Thickness Capabilities

Mild Steel

Up to 8.00" Thick

Stainless Steel

Up to 1.00" Thick

Aluminum

Up to 1.00" Thick

Copper

Up to 0.375" Thick

Brass

Up to 0.375" Thick






If you have questions about a project, please feel free to contact our sales team.

Kindest Regards,

The Laser Metal Profiles Team





Thank you for reading our blog post! Don't forget to leave a Google Review and follow us on our social media accounts!



Instagram: @LaserMetalProfiles

LinkedIn: Laser Metal Profiles Limited

LMP Team at 9:30 AM
RSS icon Facebook icon Twitter icon LinkedIn icon

Meet Our Team!

As a company, it is important to ensure that we work as a team regardless of the task at hand. We work together ensuring that we have community values and team results. As a part of this week’s blog, it would be our pleasure to introduce you to some of our employees here at LMP!

Carlo Buffone: President of Laser Metal Profiles

Starting in 1987, Carlo enrolled as a student at Conestoga College. He pursued his passion for new technologies, which led him to an interest in Laser cutting equipment. Carlo began working as a CNC Laser operator in his early days after graduating. As a result, this gave Carlo the ability to understand the equipment from an operator, programmer and maintenance perspective. The knowledge and experience he obtained during that time helped him establish Laser Metal Profiles in 2002. He now employs approximately 40 hardworking individuals and manages a state of the art company servicing all aspects of profile cutting, forming and welding. Carlo is more than willing to assist you in any inquiries you may have!

Anthony Pella: Sales Manager

Anthony has a wealth of experience in the metal industry and extensive sales experience. As a result, he provides our customers with the highest level of service and quality and ensures our customers receive exactly what they are looking for in a fair and timely manner. Anthony’s incredible leadership skills have helped him manage the sales department. He is dedicated in servicing our Customers. Anthony would be more than happy to hear from you if you have any questions or inquiries about an upcoming project!


Dave Ganesh: Quality Manager

Dave has eighteen years of quality management experience. He obtained a Bachelor of Science & Engineering Degree from the University of Toronto. Dave is OEM certified, has extensive ISO experience along with a wealth of supplier experience. He ensures that our product meets the customer quality standards in a timely manner.


Michelle Bateman: Sales/Customer Service Representative

Michelle is a Customer/Sales representative. Her main responsibilities include quoting and Customer Service. She also oversees the administrative staff. Michelle’s dedication to the company is conveyed through her hardworking demeanour as well as her extensive knowledge of the metal industry.

Julie Stuart: Human Resources

Julie is a determined individual who strives to learn and grow within the company. Her seven-year background in recruiting has led her to this position. Julie is responsible for recruiting, screening, interviewing and placing workers. She also handles employee relations, payroll, benefits and training. If you are interested in any job postings that Laser Metal Profiles has posted, please feel free to contact Julie. She is more than happy to help!

We hope you enjoyed getting to know some of our team, stay tuned for future blogs!

Sincerely,

The Laser Metal Profiles Team


            "Coming together is the beginning, keeping together is a progress, working together is success!"
                                                                                                                                                      -Henry Ford
